Place of Origin: | Mainland China |
Brand Name: | NC321 |
Certification: | ISO9001,CE,SGS |
Model Number: | 321 |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | $1-50 |
Packaging Details: | Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000 pcs monthly |
Part Name: | Monostrand Anchorage | Anchor Material: | Cast Iron |
---|---|---|---|
Wedge Materials: | 20CrMnTi | Specification: | 12.7mm Prestressed Strand |
Color: | Galvanized/Black/Yellow/Colored | Sample: | Available |
High Light: | post tension accessories,prestressed anchorage |

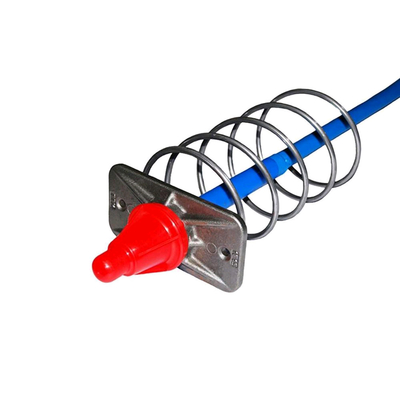

Monostrand Post Tensioning Grip Systems Strand Anchors Wedges
Description
Adaptable to a variety of structures, unbonded monostrand can be easily, rapidly, and economically installed. Applications for monostrand systems include elevated slabs, slab-on-grade, beams and transfer girders, joists, shear walls and mat foundations.
Our unbonded systems feature 0.5" and 0.6" diameter strands coated with a layer of specially formulated grease. The outer layer is seamless plastic extruded in one continuous operation to provide protection against corrosion. Each tendon is precisely coiled, cut, labeled, color-coded and delivered to the construction site. A wide variety of anchorage systems (see Product Information tab below) are available to meet design specifications.
Encapsulated unbonded monostrand systems are used in areas that are subject to corrosive conditions. Strands are protected at the anchorages using greased plastic sleeves and grease-filled end caps. Additionally, anchorage components are fully encapsulated in a high density polyethylene plastic covering and an optional encapsulated intermediate coupler anchorage system can be used to protect the strand at construction joints.

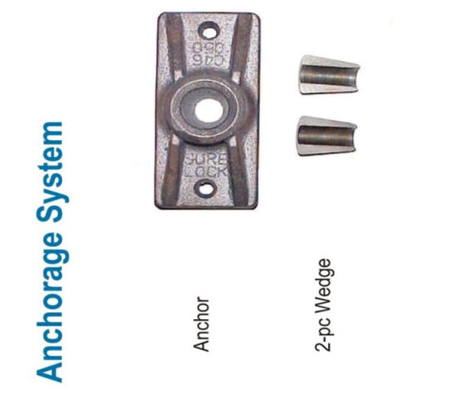

The material for this anchorage is spheroidal graphite cast iron, which puts tranditional anchor ring and plate into one integration anchor. It simplifies the complicated the manufacturing procedure and structure, which has the advantage of convenient construction, perfect sealability and easy to guarantee the perpendicularity between the anchorage and steel strands. And the cost will be lessened more than 20%.
1. Type: anchorage system |
2. Capacity: HRC 15-35 |
3. Holes for anchorage: One hole |
4. Wedges: 2pcs or 3pcs |
5. Shape: round or flat |
6. Specification: Used for the PC steel strand 12.7mm and 15.24mm. |
7. Package: In box and outside wooden case |
8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe. |
Our Service
FAQ
Q: How long is your delivery time?
A: Generally it is 5-30days, it is according to quantity.
Q: Do you provide samples ? is it free ?
A: Yes, we can provide free sample, customer shall need to pay for the express charge.
Q: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment.
Q: Do you accept the OEM?
A: Yes, we accept custom design OEM or ODM.
