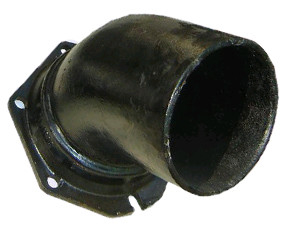

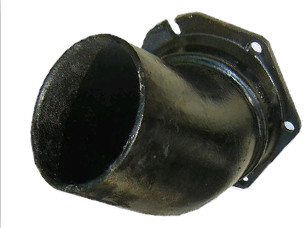

Mechanical Cast Iron Pipe Fittings MJ×PE 90 Degree Bend Cement Lining Finish

Mechanical Cast Iron Pipe Fittings MJ×PE 90 Degree Bend Cement Lining Finish

  • Mechanical Cast Iron Pipe Fittings MJ×PE 90 Degree Bend Cement Lining Finish
  • Mechanical Cast Iron Pipe Fittings MJ×PE 90 Degree Bend Cement Lining Finish
Mechanical Cast Iron Pipe Fittings MJ×PE 90 Degree Bend Cement Lining Finish
Product Details:
Place of Origin: Mainland,China
Brand Name: NC771
Certification: ISO9001,CE,SGS
Model Number: 771
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs monthly
Contact Now
Detailed Product Description
Part Name: AWWA C153 MJ×PE 90 Deg Bend Material: Ductile Iron
Color: Black Standard: ANSI/AWWA C153
Finish: FBE/cement Lining Sample: Free
High Light:

ductile iron pipe fittings

,

pipe fitting components

Ductile Iron AWWA C153 Mechanical Fittings MJ×PE 90 Degree Bend



Specification



Material: ductile iron ASTM A536
Size range: DN 80-2600mm
Working pressure: 350 psi for 100mm~600mm; 250psi for 750mm~2600mm
Manufacture standard: ANSI/AWWA C153
Casting method: lost foam technique
Testing according to ANSI/AWWA C153/A21.53
Annual capacity: 5,000 tons
Coating: FBE/cement lining with zinc bitumen coating/zinc+ bitumen inside and outside/customers’ requirement
Accessories: SBR/EPDM rubber(ANSI/AWWA C111/A21.11) gaskets, T-bolts and nuts(low ally steel ANSI/AWWA C111/21.11), and gland, etc.
Package: standard wooden/steel pallets/customers’ requirements
Easy installation at site and service free for life



Mechanical Cast Iron Pipe Fittings MJ×PE 90 Degree Bend Cement Lining Finish 0



Our Service


Any inquiry will be quoted within 48 hours
Exclusive and unique solutions will be provided by our well-experienced senior consultant team
You can get more information about Chinese market from us timely deliver.
Special discount and protection of sales area will be provided to our distributor.

FAQ


Can I get free samples

A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
