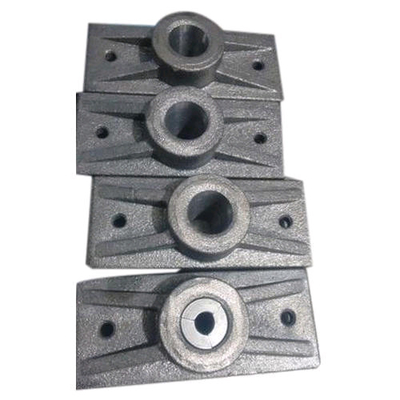

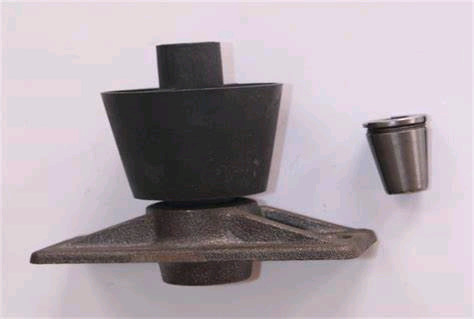

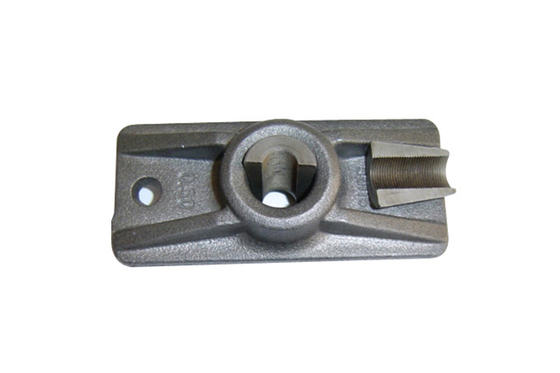

Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor

Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor

  • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
  • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
  • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
Product Details:
Place of Origin: Mainland,China
Brand Name: NC8O9
Certification: ISO9001,SGS,BV
Model Number: 809
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Crate
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs monthly
Contact Now
Detailed Product Description
Part Name: Monostrand Anchor Material: Cast Iron
Application: For PC Strand Color: Galvanized/Black/Yellow
Capacity: 1860Mpa Sample: Available
High Light:

post tension accessories

,

prestressed anchorage

Prestressed Unbonded PC Strand Post Tension System Cast Iron Monostrand Anchorage And Wedges



Product Details



Product Name


One Set Assembly
Two Pieces:anchor head,Wedge
Three Piece:anchor head,Wedge,Plate
Four Piece:anchor head,Wedge,Plate,Spiral ring



Material of anchor barrel
40Cr or S45C
Material of Wedge
20CrMnTi ; 20CrMn5
Type of wedge
2pcs or 3pcs
Holes
1-55 holes
Hardness of work anchorage(HRB)
20~35
Hardness of work Wedge(HRC)
50~65
Hardness of work anchorage treatrent(HRC)
50~100
Anchor Efficiency Coefficient η a
η≥0.95
Total Strain of Ultimate Tension εapu (%)
≥2.0%
With-draw of wedge after stressing
≤6mm
Delivery time
1 week for ready goods
Feature
Galvanized OR Chemcial Dioxide Surface Treatment(Black)



Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor 0



Our Service



Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.

Professional services: 1x7 days 24 hours service online, and engineer can service oversea

Samples: We are free to provide you sample for your test

A: Please tell me how many holes anchor do you need?

B: What is your required diameter for pc strand you use?

FAQ

Q:Are you a factory or trading company?
A:We are a factory

Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.

Q:How long is your delivery time?
A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.

Q:What is your terms of payment?
A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30%
prepayment in advance and the balance payable against the copy of B/L.
