Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm

Product Details:

Place of Origin:	Mainland,China
Brand Name:	nc781
Certification:	ISO9001,CE,SGS
Model Number:	781

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	$1-50
Packaging Details:	Crate
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	60,000 pcs monthly

Contact Now

Detailed Product Description

Application:	Concrete Structure	Material Of Anchor Head:	40Cr
Material Of Wedge:	20CrMnTi	Material Of Bearing Plate:	HT200
Hole Counting:	1-19	Outer Diameter Of Anchorage Head:	138 Mm
High Light:	post tensioning system , prestressed anchorage

Multi Holes Prestressed 12.7 mm Concrete Strands Round Anchorage

Product Introduction

1. An anchorage that is suitable for post-tensioned concrete pretensioning in the construction process.
2.It is usually used in bridge construction, pre-installed positioning, and then poured concrete, buried in the concrete at both ends, that is, the two ends of the bellows, is the end face set for the stability of the jack when tensioning Anchors, also known as prestressed anchors.

Product Details

Product Name	Prestress Anchorage
Material	Wedge: 20CrMnTi, Anchor head: 40CrMnTi steel, Anchor bearing plate: HT200
Hardness	Wedge:78-85HRA, Anchor head: 25-36HRC
Steel strand's diameter	12.7mm/15.2mm
Wedge type	2 Pieces/set
Certificate	ISO, SGS
Packing	Free fumigation wooden case
Produce Standard	Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to GB/T9439-88
Full set including	anchor head, wedge, bearing plate, spiral reinforcement.
Test	Metallographic Analysis and Testing of magnetic particle flaw detection

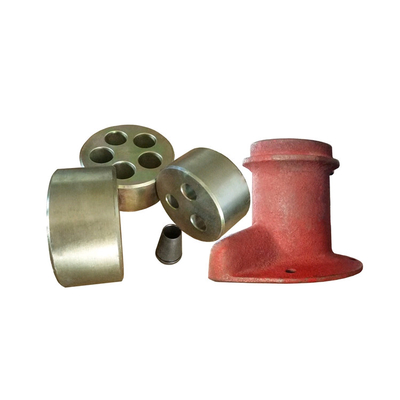

Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm 0

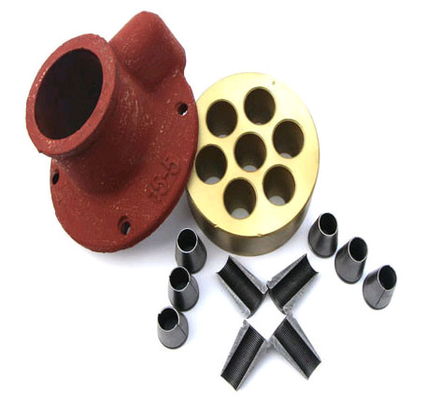

Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm 1

About Us

We have been specializing in production of prestressed machinery equipment products and anchor products.

Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc.

We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.

Our Advantages

Three options of customers usually order:

A: Complete sets: Anchor Head(Ring)+ Wedges+ Anchor Plates+ Spiral Spring Ring

B: Three sets: Anchor Head(Ring)+ Wedges+ Anchor Plates

C: Two sets: Anchor Head(Ring)+ Wedges

4Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.

Professional services: 1x7 days 24 hours service online, and engineer can service oversea

Samples: We are free to provide you sample for your test

A: Please tell me how many holes anchor do you need?

B: What is your required diameter for pc strand you use?

FAQ

Are you a manufacturer or trading company?

We are a trading company,sales of various prestressed system products.

What is your terms of payment?

We accept Trade assurance,T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.We would like to comply with your request.
