12.7mm Prestressed Steel Wedge Anchor / Post Tension Accessories Single Hole Anchor

12.7mm Prestressed Steel Wedge Anchor / Post Tension Accessories Single Hole Anchor

  • 12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor
  • 12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor
  • 12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor
12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor
Product Details:
Place of Origin: Ningbo,China
Brand Name: NC160
Certification: ISO9001,CE
Model Number: 160
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs monthly
Contact Now
Detailed Product Description
Type: Wedge Anchor Material: Steel
Diameter: Customized Application: Construction Material Of Bridge, Road, Railway, Building EtcConstruction Material Of Bridge, Road, Railway, Building Etc
Shape: Round Anchor Head Sample: Free Sample
Capacity: High Load Capacity, 10000 Sets
High Light:

post tensioning system

,

post tension accessories

12.7mm 15.2mm Prestressed Wedges Anchor Mono Strand Anchorage Single Hole Anchor



Description



Stressing anchorage is the most common form of post-tensioning system, widely used in concrete structure and soil / rock retaining walls. Stressing anchorage consist of wedge, anchor head, bearing plate and spiral reinforcement.
The products can be divided into two types,VLM15 and VLM13 according to their strand diameters.
It can be used to anchorφ12.7~12.9mm,φ15.1~15.9mm,standard strength 1470~1960Mpa low relaxation and high strength PC strands, and can be also to 7φ5,7φ7,strength 1470~1770Mpa PC steel wires.
These anchorage are suitable for the structures of the prestressed concrete components in the post-tensioning constructions and rock soil anchoring. These anchorages all feature automatically following-up, automatically anchoring after tension releasing, high anchoring efficiency coefficient, fine anchoring perfoemance, safety and reliability, etc. these types of the anchorages are all typed with “VLM15””VLM13”ect. Steel seal letter (letter “VLM” are also on the big end of the wedges) in order to be identified and guarded against imitations.
This series have different hole quantities for slected.



Product Details


Components for one full set Anchor head+wedge+bearing plate+spiral reinforcement
Round anchorage 1-50 holes
Flat anchorage 2-5 holes
Material of anchor head 40Cr
Material of wedge 20CrMnTi
Material of bearing plate HP300
Material of spiral reinforcement Q235
Surface treatment anti-rust treatment
Package in cartons or wooden boxes
Application field post tension projects such as bridges, malls and roads

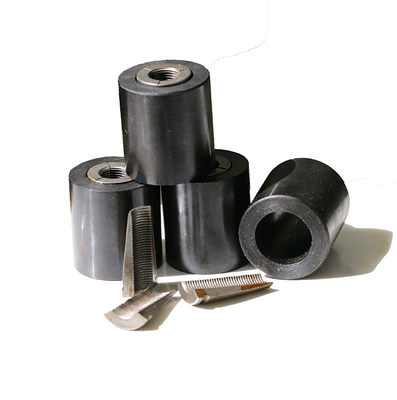

12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor 0

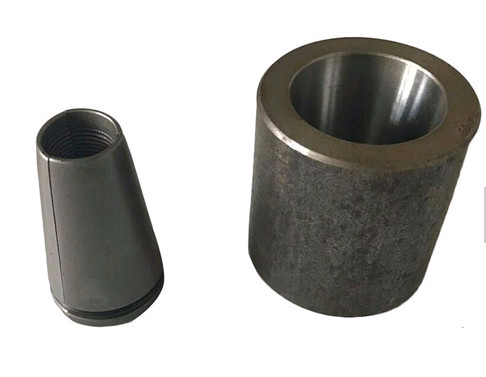

12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor 1

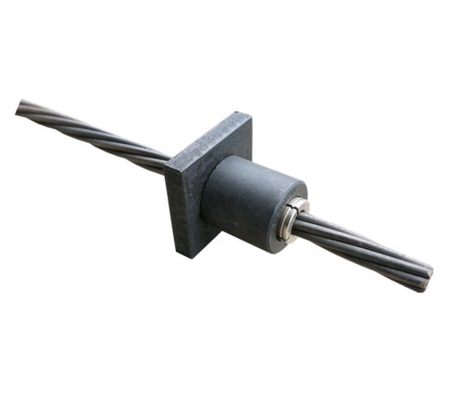

12.7mm Prestressed Steel Wedge Anchor /  Post Tension Accessories Single Hole Anchor 2



Why Choose Us


Company quality

The company operates a Quality Management System that complies with ISO 9001 and all products are manufactured to exacting standards using high specification materials. Our products are approved and tested according to the latest national standard requirements.

Company commitment

Involved in projects from conception to construction, we offers assistance to help clients meet the requirements of the stru cture and local technical standards.

Together-contribute to charity
Part of your each payment will be used to fanance the orphans' living and learing in SOS children's village. Together, let's make a difference.



FAQ



Q1: What is your payment terms:
A1: TT FOB: 30% deposite, balance before shipment. TT CIF: 30% deposite,

balance based on scanned
BL.LC 100% at sight



Q2: Can you supply stocks? Can you deal small orders?
A2: Yes, we can.Small orders can also be accepted.



Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we can offer samples free of charge. But the express cost should be on

buyer's account.



Q4: If found the product with substardard quality. How can you solve it?
A4: The buyer will be required to submit proof file, picture, video of the said substandard

cargo to us first. We can also send our engineer to your field to check it directly, if necessary.



Q5: If accept OEM service to made product as per buyer offering drawing?
A5: Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
