Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate

Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate

  • Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate
  • Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate
  • Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate
Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate
Product Details:
Place of Origin: Ningbo,China
Brand Name: nc187
Certification: ISO9001,CE,SGS
Model Number: 187
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 80,000 pcs per month
Contact Now
Detailed Product Description
Type: Rail Tie Plate Material: Ductile Iron Q450-10
Weight: 2-10kg Application: Rail Construction
Thickness: 5-100mm Surface: Plain (oil), Color Paint, Zinc, Etc
High Light:

cast iron sand casting

,

resin sand casting

Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate​



Application



A base tie plate, also called sole plate or baseplate, is a piece of plate made by steel used between the rails and sleeper ties in order to enlarge the bearing touching area and maintain the rail in right gauge all the time. For wooden ties, a baseplate is always fixed with rail spikes or track bolts in holes on the plate

Types of tie plate:

1. The tie plate can be either casting iron or casting steel, depending on the load and the type of rails. Cast iron can be the welded or fabricated type, depending on the customers' requirements.
2. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside (field side) of the rails.

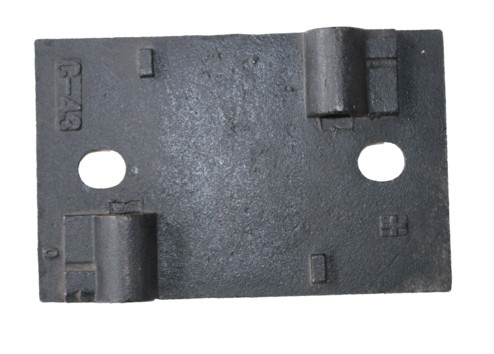

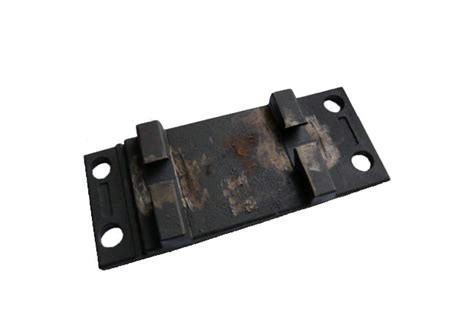

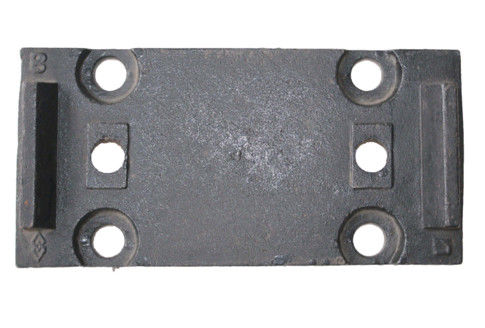

Product Show

Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate 0



Duction Iron Casting QT450-10 Railway Tie Plate Railway Fasteners Rail Base Plate 1

Type Dimension Holes Incline Rail Weight(Kg)
Rph 1/160 345/285/127/160x15/13 Ø 26 (4x) 1:40 S 49/S 54 7,86
Rp 01/01/160 345/285/127/160x15/13 Ø 26 (4x) 1:40 S 49/S 54 7,70
Rph 1/210 345/285/127x210x15/13 Ø 26 (4x) 1:40 S 49/S 54 10,55
Rph 1/210 345/285/127x210x15/13 Ø 36,3 (2x) 1:40 S 49/S 54 10,55
Rph 1/210 FVZ 345/285/127x210x15/13 Ø 26 (4x) 1:40 S 49/S 54 10,69
Sph 1(a) 345/350/127x410x15/13 Ø 26 (8x) 1:40 UIC 60 20,60
Rph 6/160 370/310/152x160x15/13 Ø 26 (4x) 1:40 UIC 60 8,44
Rph 6/210 370/310/152x210x15/13 Ø 26 (4x) 1:40 UIC 60 11,32
SZ 60 370/350/152x420x15/13 Ø 26 (8x) 1:40 UIC 60 22,73
Rph 11 664/554x160 Ø 26 (4x) 1:40 S 54 15,37
Rph 13 690/570x160 Ø 26 (4x) 1:40 UIC 60 15,27
Rpo 5 345/285/127x160x15/13 Ø 26 (4x) 1:20 S 49/S 54 8



Our Service



1, OEM &ODM accept
2, Sample Free

3, lowest price with high quality in China
4, Your enquiry with reply in 24 hours

5, OEM for some brand rail fastener



Other Related Parts



We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.



FAQ



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
