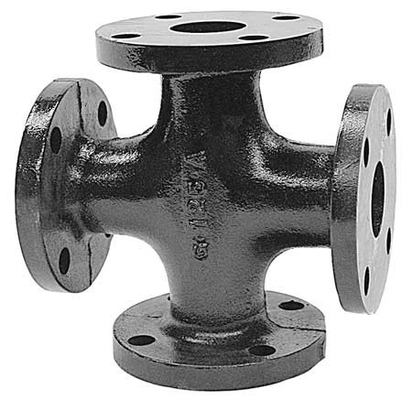

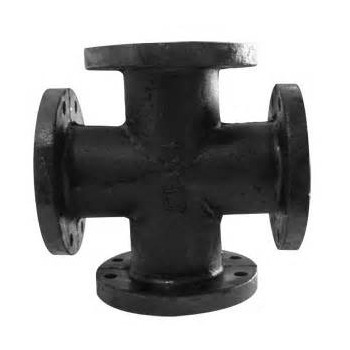

Oil Supply Pipeline Cast Iron Flanged Cross 4 Way Cross ISO 2531 / EN545 / EN598
Product Details
Application: Transferring the drinkable water, waste water and for irrigation.
Use: Jointed by bolts and nuts, sealed by gaskets.
Market: Europe, Middle east, Africa, America
Hardness: maximum≤250HB
Proof stress:minimum≥300MPA
Tensile Strength:minimum≥420MPA
Elongation: minimum≥5%
| Material : |
Ductile Cast Iron |
| Size Range : |
DN 50mm to DN 2600mm |
| Joint Type : |
Flange PN10,16,25bar / Socket / K Type with Mechanical Gland |
| Manufacture Standard: |
ISO 2531 / EN545 / EN598 |
| Casting Method: |
Lost foam technique |
| Annual capacity : |
10,000 tons |
| Coating Exterior: |
zinc 130g/m2 and bitumen coating 70 microns / Epoxy Coating 250um. |
| Cement Lining Interior: |
Portland Cement/ High Alumina Cement/ Sulphate Resisting Cement / Epoxy Coating 250um. |
| Related Products |
Rubber gaskets, bolt, nuts. |
About Us
We supply a diverse range of components for many different sectors of the waterworks industry. We have a core of quality suppliers and we specialize in Ductile Iron pressure pipeline products for the water and waste water industries of the world.
Please see the following product we are mainly produce:
Ductile Iron Fittings with Flanged, Socked or Mechanical joints
Ductile Iron Fittings to suit Metric PVC pipe
Flange Adaptors and Couplings
Stainless Steel Tapping Saddles
Waterworks and Commercial Services valves in both Cast and Ductile Iron
Our Advantages
1. Quality Inspection: ultrasonic testing, magnetic particle testing, penetration testing and visual test.
2. Certifications: ISO14001, ISO9001
3. Industry experience: Rich experience for producing pipe fitting
Package
Standard export wooden case, wooden pallets or as per your requirements
Contract Manufacturing: OEM Service Offered; Design Service Offered; Buyer Label Offered;
Quality and After-sales series
Our production are strictly in accordance with ISO2531, EN545, corresponding standard, and approved ISO9001 management system certificate.
If any questions appear in quality, of course, the chance is small, our company will mend it or exchange new one, and responsible for its charge.
If any questions appear in installation in end-user, we can dispatch technical personnel to site to solve the problem.
Our Advantages
1. Quality Inspection: ultrasonic testing, magnetic particle testing, penetration testing and visual test.
2. Certifications: ISO14001, ISO9001
3. Industry experience: Rich experience for producing pipe fitting
FAQ
1. What's our process?
For fittings bigger than DN300, we use resin sand cast;
For fittings no bigger than DN300( including DN300), we use clay sand cast.
Green sand with hand moulding and 3 semi-automatic lines are available.
2. Could we foundry customers brand on castings?
customers brand marked on products are acceptable.
3. Is third party inspection is available for our castings?
Yes, both foundry in-house and third party inspection are available.
While the third party inspection may should be bear by customers self.
