Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector

Product Details:

Place of Origin:	Ningbo China
Brand Name:	NC120
Certification:	ISO 9001
Model Number:	120

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Wooden Case
Delivery Time:	30 days
Supply Ability:	60,000 pcs per month

Contact Now

Detailed Product Description

Type:	Adapter	Application:	PC Strand, Bridge Construction
Material:	Steel	Diameter:	245mm
Hardness:	20-35HRC	Strength:	1860MPa
High Light:	post tensioning system , post tension accessories

Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector

Description

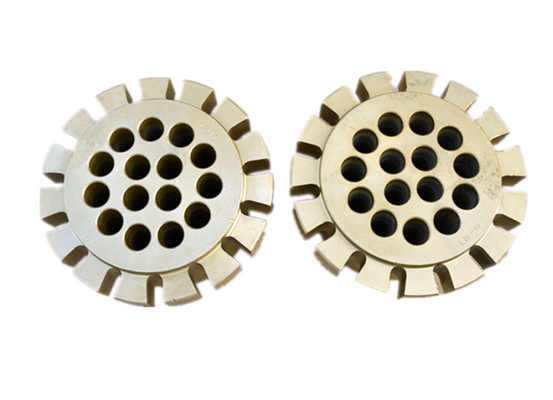

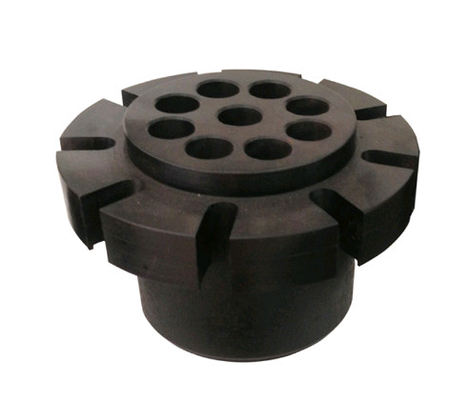

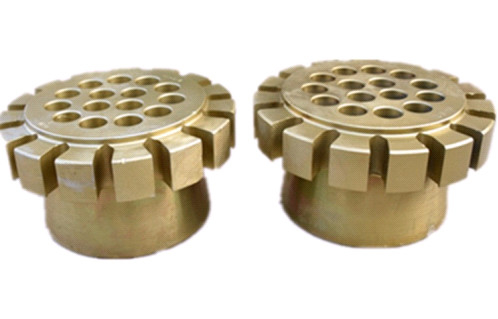

Strand Coupler

1. LQM strand coupler include LQM 15L and LQM 13L periphery hanging connectors. They are mainly suitable for the connection long of dia.0.5" and 0.6" PC strand bundles, and used in the post-tensioning continuous beam structure.

2. LQM strand coupler periphery hanging connectors consist of coupler, wedge, squeezing socket, anchor bearing plate, spiral reinforcements, restraining ring, protective sleeve, metal corrugated duct, and PC tendon etc..

3.This strand coupler performance is better and it is suitable for the connection of various tonnage PC strand bundle.

Product Details

Type	Strand No.	Anchor Fitting A×B×ΦC	Corrugated Pipe Inner Dia	ΦE×F Anchor Ring	Spiral Bars		Anchor Fitting		Tensioning Jack Type
Type	Strand No.	Anchor Fitting A×B×ΦC	Corrugated Pipe Inner Dia	ΦE×F Anchor Ring	ΦG×ΦH×1	Ribs	Holes Distance	Holes Dia.	Tensioning Jack Type
YJM15-1	1	80×80×Φ12		Φ45×45	Φ70×Φ6×30	4			YDC260Q (YDC240Q)
YJM15-2	2	130×85×Φ71.5	Φ50	Φ88×48	Φ100×8Φ×40	4	88	M12
YJM15-3	3	130×85×Φ71.5	Φ50	Φ88×50	Φ100×8Φ×40	4	88	M12	YCW100B
YJM15-4	4	140×90×Φ80	Φ55	Φ102×50	Φ130×10Φ×40	4	100	M12	YCW100B
YJM15-5	5	150×110×Φ89	Φ55	Φ108×50	Φ140×10Φ×50	4	120	M12	YCW100B (YCW150B)
YJM15-6	6	180×120×Φ102	Φ70	Φ126×50	Φ170×Φ12×50	4	140	M12	YCW100B
YJM15-7	7	180×120×Φ102	Φ70	Φ126×50	Φ170×Φ12×50	4	140	M12	YCW150B (YCW250B)
YJM15-8	8	200×140×Φ118	Φ80	Φ136×50	Φ180×Φ14×50	5	170	M12	YCW250B
YJM15-9	9	210×160×Φ118	Φ80	Φ147×50	Φ200×Φ14×50	5	170	M12	YCW250B
YJM15-10	10	240×190×Φ136	Φ90	Φ158×50	Φ230×Φ14×60	5	190	M12	YCW250B
YJM15-11	11	240×190×Φ136	Φ90	Φ158×50	Φ230×Φ14×60	5	190	M12	YCW250B
YJM15-12	12	240×190×Φ136	Φ90	Φ166×50	Φ230×Φ14×60	5	190	M12	YCW250B
YJM15-13	13	240×190×Φ136	Φ90	Φ166×56	Φ230×Φ14×60	5	190	M12	YCW350B
YJM15-14	14	240×200×Φ148	Φ90	Φ177×60	Φ230×Φ16×60	5	190	M12	YCW350B
YJM15-15	15	240×200×Φ153	Φ90	Φ178×60	Φ230×Φ14×60	5	190	M12	YCW350B
YJM15-16	16	260×220×Φ159	Φ90	Φ195×60	Φ230×Φ16×60	5	200	M12	YCW350B (YCW400B)
YJM15-17	17	260×220×Φ159	Φ90	Φ195×65	Φ230×Φ16×60	5	200	M12	YCW350B (YCW400B)
YJM15-18	18	270×220×Φ176	Φ100	Φ205×65	Φ230×Φ16×60	5	200	M12	YCW400B
YJM15-19	19	270×220×Φ176	Φ100	Φ205×65	Φ250×Φ16×60	6	200	M12	YCW400B (YCW500A)
YJM15-21/22	21/22	320×260×Φ210	Φ120	Φ235×72	Φ280×Φ18×70	6	240	M12	YCW500A
YJM15-25/26/27	25/26/27	350×295×Φ222	Φ130	Φ256×100	Φ300×Φ22×70	6	260	M12	YCW650A
YJM15-30/31	30/31	390×346×Φ222	Φ130	Φ275×100	Φ420×Φ18×70	7	290	M12	YCW650A
YJM15-34/37	34/37	465×390×Φ246	Φ140	Φ305×120	Φ450×Φ20×70	8	350	M12	YCW900A
YJM15-43/44	43/44	500×450×Φ286	Φ160	Φ336×130	Φ500×Φ50×80	8	376	M12	YCW900A
YJM15-54/55	54/55	540×510×Φ295	Φ160	Φ345×160	Φ230×Φ16×60	8	400	M12	YCW1200A
