Place of Origin: | Ningbo China |
Brand Name: | NC129 |
Certification: | ISO 9001 |
Model Number: | 129 |
Minimum Order Quantity: | 1 pcs |
---|---|
Packaging Details: | According to customers' requirements |
Delivery Time: | 35 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 160,000 pcs per month |
Material: | Cast Iron Or Steel | Finish: | Natural |
---|---|---|---|
Application: | Building Industry, Post Tensioning System | Inspection: | Taper Pocket Gauge |
Specification: | CE | HS Code: | 73081000 |
High Light: | post tensioning system,prestressed anchorage |

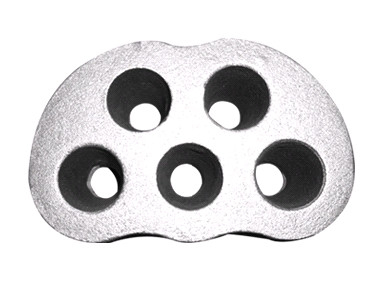

Prestressed Concrete Strands Steel Investment Casting Anchor Head Anchor Plate
Post Tensioning Cast Anchor Head Anchor Plate for Prestressed Concrete Strands
Application
1. Product Name |
2. Processes: Investment Casting, Precision Casting, Lost Wax Casting, Lost Foam Casting, Sand Casting, Foundry, Silica Sol Casting. Water glass casting, Steel foundry. |
3. Material Range: Carbon Steel, Stainless Steel, Manganese Steel, Malleable Iron, High Chromium Iron, Grey Iron, Ductile Iron. |
4. Certification system : ISO 9001, Strict material inspection; Exact dimension control;100% quality control. |
6. Application Fields: Construction Industry. |
Usage of each part of Anchorage system
Wedge
Wedge is the key part of anchorage system, which is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system apply to the two-chip BJM15-J, it can be used for ring anchorage, flat anchorage, but also used for porous coupler.
Anchorage ring
Anchor ring is the key part of bearing the Prestressing tension. The ring anchorage is made by 45# high-quality carbon construction steel, and the flat anchorage is made by 40Cr steel. It includes the ring anchorage head and flat anchorage head.
Bearing plate
Bearing plate is the key component, which transfer the load from anchorage ring to concrete under anchor. The method of transfer and distribution of stress affect the anti-cracking and load capacity of concrete.
Bursting reinforcement
The bursting reinforcement used for distributing the concrete. For prevent concrete from crazing, and use the bursting reinforcement for strengthening tendons.
FAQ
Q: Why us?
A: Our company was founded from prestressed clip blank, And now we can produce four pieces or even N pieces anchor wedge.
Q: Can the customers customize the design sketch?
A: Sure, welcome!
Q: Why we are worth trusting?
A: You are warmly welcome to visit our factory, and our working process.
Q: Is quality guaranteed?
A: We have CCPC certificates, and all our products must pass the quality inspection process before shipment.
