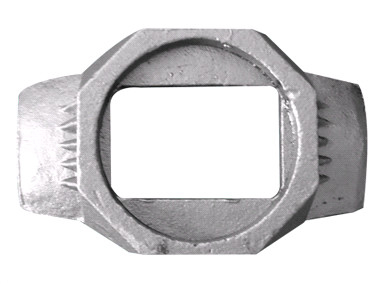

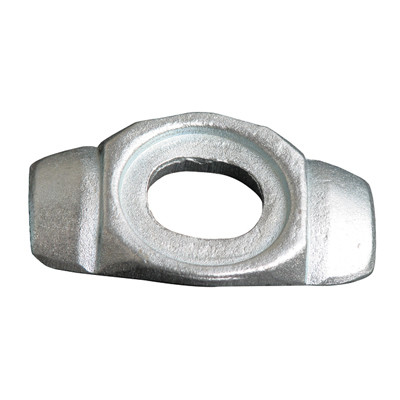

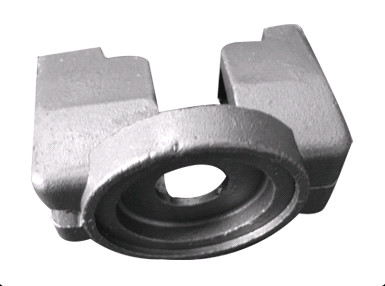

Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel

Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel

  • Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel
  • Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel
  • Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel
Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel
Product Details:
Place of Origin: Ningbo China
Brand Name: NC81
Certification: ISO 9001
Model Number: 81
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Pallet
Delivery Time: 25-30 days
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Parts Name: Cuplock Ledger Blade Material: Q235 Steel, Cast Iron
Usage: For Cuplock Scaffolding Specification: QEC, CQC, CE, ISO. ASTM, UK, BS1139, EN74
Color: Black, Zinc Surface Finish: Painted, Powder
HS Code: 730890
High Light:

scaffolding parts

,

formwork accessories

Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel



Description



Cup-Lock scaffolding system is a multi-purpose system scaffold, suitable for access and formwork support in all types of construction of building & civil engineering projects. This complete galvanized system is probably the fastest and most-widely preferred scaffold system.



The main feature of Cup-Lock is the unique node locking method which allows up to four horizontal members to be fastened to a vertical member in one action by a single hammer blow - without the use of nuts and bolts or wedges.

The locking node is formed by two cups, a fixed lower cup which is welded to the vertical member at every 500mm intervals and a sliding upper cup. First the forged blade ends of the horizontal member are connected loosely but safely to the lower cup.

The key strength of Cup-Lock scaffolding system is being extremely versatile. It is ideal for many applications as formwork support, or general access scaffold, staircase tower, mobile tower and table form. It has flexible erection as straight, curved or circular configuration for both access and support purposes.

Features


1. Scaffolding cups are made from nodular cast iron with high strength and stiffness.

2. Scaffolding cuplock ledger blade is easy and quick to install and strip, which can save your time.

3. Scaffolding cuplock ledger blade can be galvanized to prevent rustiness and corrosion.

4. Scaffolding cuplock provides high loading capacity while its structure is quite flexible.

5. Scaffolding cuplock include standard, ledger, up cup bottom cup and ledger blade



6. All the cuplock scaffolding accessories are compatible with steel tube dia 48mm.



7. Cuplock Scaffolding bottom cup are made with teeth on the edge to clamp the ledger blade and holes on the bottom to let water flow out in rainy days.



8. The sizes of cuplock scaffolding accessories can be as customer's need.



Our main products are quick lock scaffolding, cuplock scaffolding, ringlock scaffolding, frame scaffolding, adjustable shoring props, steel formworks, formwork clamps, steel pipes, coupler, adjustable U head and jack base and other scaffolds.


Products are mainly exported to Africa, South Africa, Asia and Middle East.

Product Details

Name Scaffolding Cuplock Ledger Blade
Certificate ISO, CE
Surface EG, hot dip galvanized, painted, power coated
Material Q235, cast iron
Delivery time Depend on customer's specific order quantities
Services We can provide considerate service and good after-sales
OEM services As per customer's requirement





Our Advantages


1. We are several decades of experience in professional manufacturer.

2. Advanced production machines.

3. We provide high-quality products at reasonable prices.

4. The strict quality control system.

5. We have a professional sales force.

6. export experience around the world.

7. We provide one-stop solution services.

Construction Support Scaffolding Accessories Cuplock Ledger Blade Q235 Steel 0

FAQ



Can I have a sample for quality check?
A: Yes, we can provide 1pc sample for free, but the express cost will be on your account.


What is the production time ?
A: Normally it is 20-40days, depending on how many orders before you.
