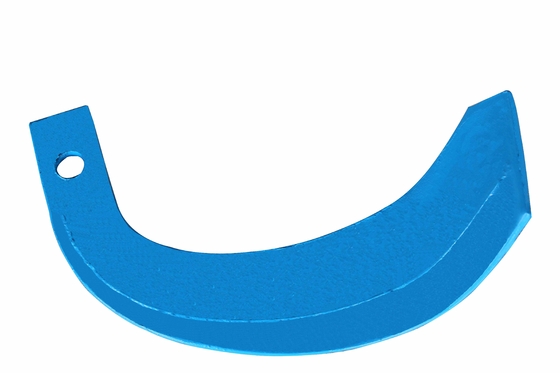

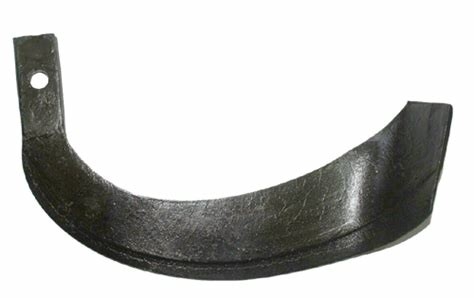

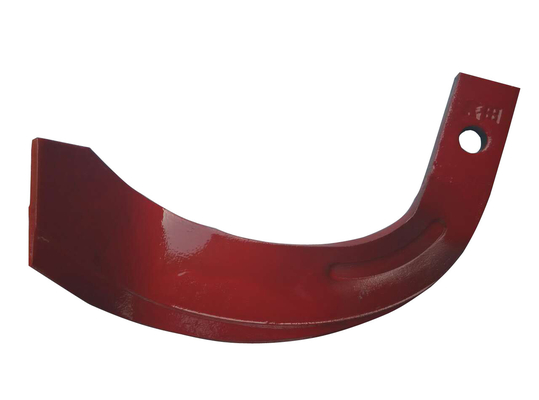

Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade

Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade

  • Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade
  • Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade
  • Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade
Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade
Product Details:
Place of Origin: Ningbo,China
Brand Name: NC172
Certification: ISO9001,CE
Model Number: 172
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 80,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Coulter Blade Production Process: Investment Casting
Surface Treatment: Powder Coated Color: Customized
Application: Agricultural Products Processing Product Name: Precision Investment Castings
High Light:

steel investment casting

,

investment and precision casting

Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade


Application



Agricultural Products Processing, Farmland Infrastructure, Planting and Fertilization, Grain Threshing, Cleaning and Drying

Description: The rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80hp. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc. during operation.


Specification



Size Standard
Material 65mn
Color Black+red +green
Weight 450g
MOQ 10 pieces
Packing 14 Pcs/CTN
Payment term L/C T/T
Delivery Way Sea Shipping
Delivery Time Advanced 25 days
Certificate ISO9001
Selling Market All over the world
Sample One sample accept, sample fee by customer


Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade 0




 Material Grade


Material chemical composition table
C(%) Si(%) Mn(%) Cr(%) P(%) S(%) B
65Mn 0.62-0.70 0.17-0.37 0.9-1.20 <=0.25 <=0.015 <=0.035
60Si2Mn 0.56-0.64 1.50-2.00 0.69-0.90 <=0.35 <=0.035 <=0.035
55Si7 0.52-0.60 1.50-2.00 0.69-0.90 <=0.35 <=0.035 <=0.035
28SiMnB 0.24-0.32 0.60-1.00 1.20-1.60 0.014 0.015   0.0005-0.0035
30MnCrB5 0.26-0.34 <=0.4 1.10-1.40 0.3-0.6 <=0.025 <=0.035 0.0008-0.005
Sup9 0.52-0.60 0.15-0.35 0.65-0.95 0.65-0.95 <=0.030 <=0.30



Our Strength

1. Experienced in Combine Manufacturing and Exporting, well know about each spare part of combine.
2. Complete Spare Parts supply for Kubota harvester Pro DC35, DC60, DC70, 68G, 588, 688Q, DC95 and Yanmar AW70G, AW85G model, for example: gears, sprocket, guard, blade, rubber crawler, pulley, roller, bolt, seal oil, bracket, spring, HST spare parts, shaft screw, etc.
3. 100% original guarantee of the spare part quality, and competitive cost.
4. One-step purchase and fast shipment, no matter you want to buy spare parts of Kubota or Yanmar.
5. Strong Packing Solution, we provide Wooden Box and Iron Box, some light spare parts by carton box.



Production Process

Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade 1

Steel Casting Application

Oil And Gas Product, Forestry Products, Heat Exchanger, Mining Products, Stainless Steel Impeller, Wench Drums, Blade Propeller, Ingot Molds, Spur Gear, Cutter Edge, Gear Housing, Plumbs, Mining Machinery Parts, Buckets Teeth, Components Of Forklift, Earthmoving Machinery Parts, earthmoving Machinery Parts, Forked Parts, Parts Of Forklift Replacement, Pipe Clamp, Impeller, Spring End Pad, Plug Valve, Impeller Casting, Hook Lock, Gear Castings

Transmission Shaft Casting Of Auto, Spring Seat, Equalizer Hanger, Lever Of High Speed Train, Vibration System On The Bottom Of Hopper, Mounting Block, Automobile Parts, Top Plate For Axle, Mounting Block, Ship Fittings Casting, Ship Casting, Auger Drill, Components Of Furnace, Electric Machine & Hardware Fittings, Machinery Accessories, Hydraulic Pressure Pump, Bearing Seat, Pawl.
Thrust Ring, Valve Body, Flanged End Gate Valve, Valve Slab Gate, Support Ring, Bearing Housing, Idler Wheel, Clamp, Mounting Bracket, Wheel Hub, Wedge Socket, Track Pad For Mining Equipment, Hydraulic Rod Yoke, Assembly Line Component, Digger Tooth, Compaction Unit Component, Wire Rope Socket, Tilt Anchor, Shackle, Mooring Casting, Male Locking Casting, Deck Cleat, Truck Frame Component.
